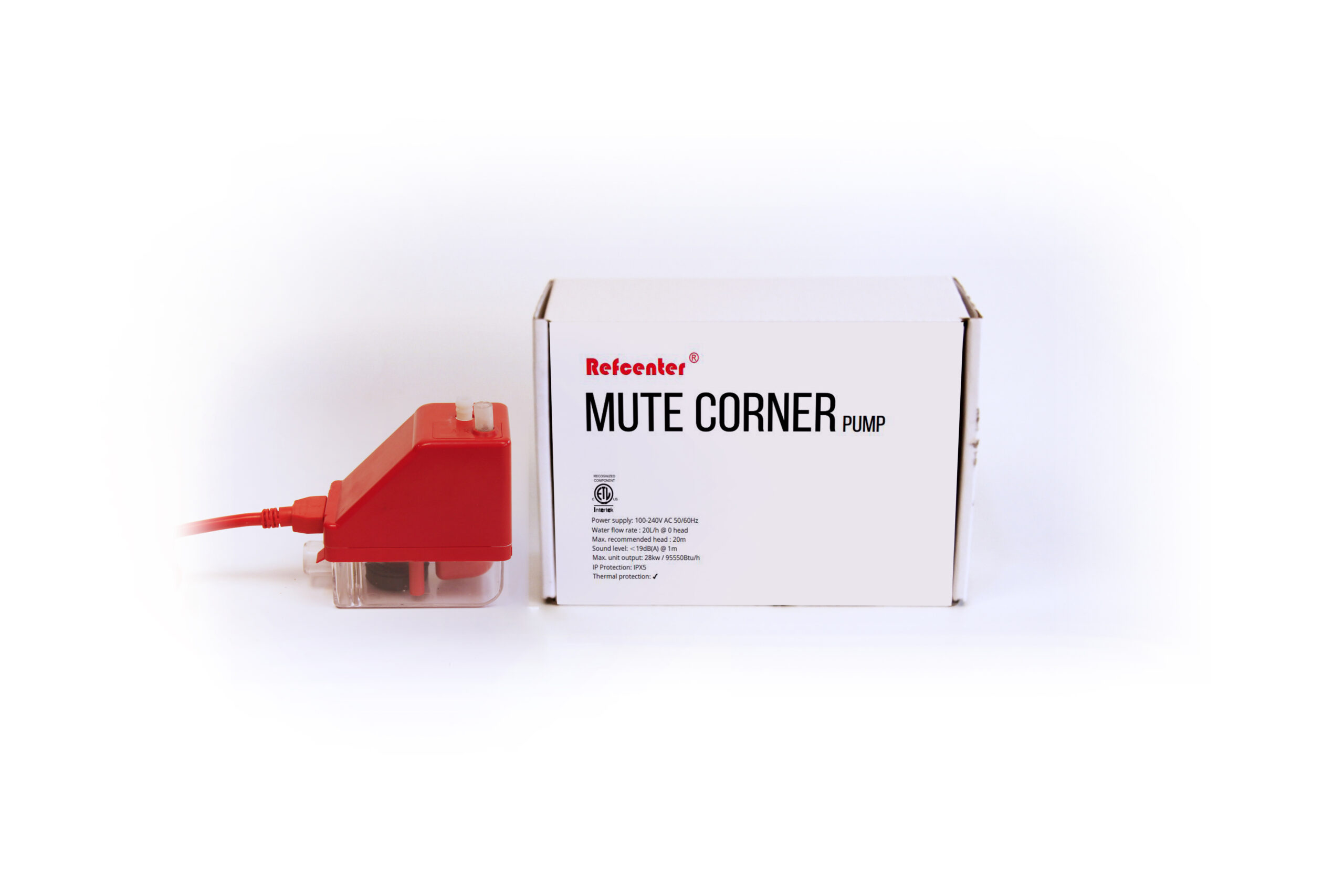

Mute Corner

Max. flow 40L/h
Sound level 19 dB @ 1 m
Max. head 20 m
Edit Content

Ultra Silent

Easy Assembly

High Capacity

Edit Content
Power supply
100-240V AC 50/60Hz <4W
Max flow
38L/h @ 0 head
Sound level
<19dB(A) @ 1m
Max recommended head
20m
Max unit output
46kw / 157000 Btu/h
Safety switch
3A Normally closed
Max water temperature
70°C
Discharge tube
6mmID
Class
II appliance
Rated
Continuous
IP Protection
IPX5
Fully potted
Yes
Edit Content

Assembled mute corner

6mm i/d vinyl tube

Assembled inline reservoir, including:

lid and sensor cable
float
filter
Reservoir

1.5m length of 6mm i/d vinyl tube

Inlet tube

4 pin socket

1 adapter

4 x 200mm x 5mm cable ties

Power cable
