Mute Tank

Max. flow 24L/h
Sound level 19 dB @ 1 m
Max. head 20 m
Edit Content

Ultra Silent

Easy Assembly

High Capacity

Edit Content
Power supply
100-240V AC 50/60Hz
Max.flow
24L/h @ 0 head
Sound level
<19dB(A) @ 1m
Max.recommended head
20m
Max.suction lift
2m
Max.unit output
28kw / 95550 Btu/h
Safety switch
3A Normally closed
Max.water temperature
70ºC
Discharge tube
6mmID
Class
II appliance
Rated
continuous
IP Protection
IPX5
Thermal protection
Yes
Fully potted
Yes
CE marked
Yes
Edit Content

Assembled mute tank

6mm i/d vinyl tube

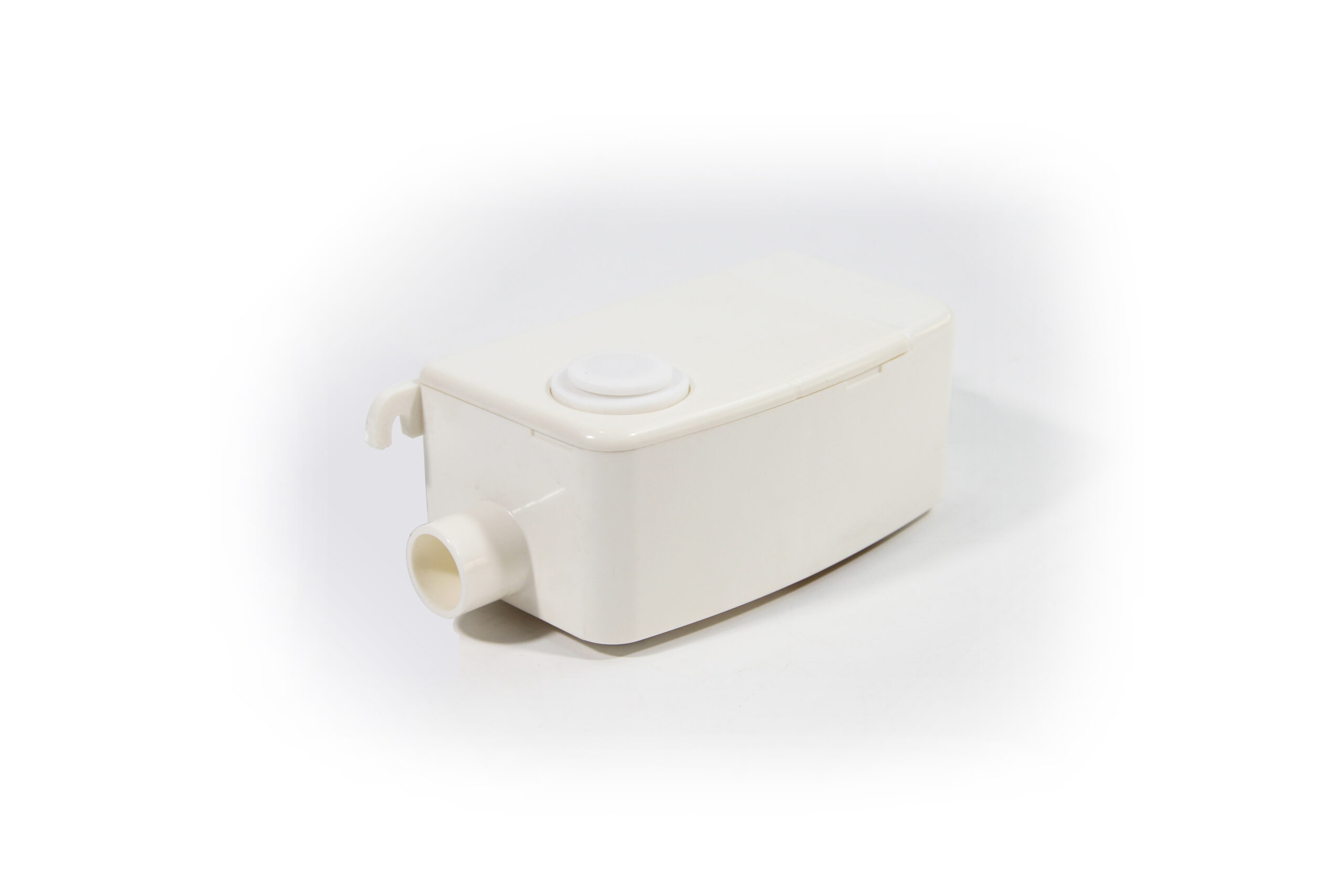

Assembled inline reservoir, including:

lid and sensor cable
float
filter
reservoir

1.5m length of 6mm i/d vinyl tube

20cm length of 4mm i/d vinyl tube

Inlet tube

Power cable
