Mute Wedge

Max. flow 40L/h
Sound level 19 dB @ 1 m
Max. head 20 m
Edit Content

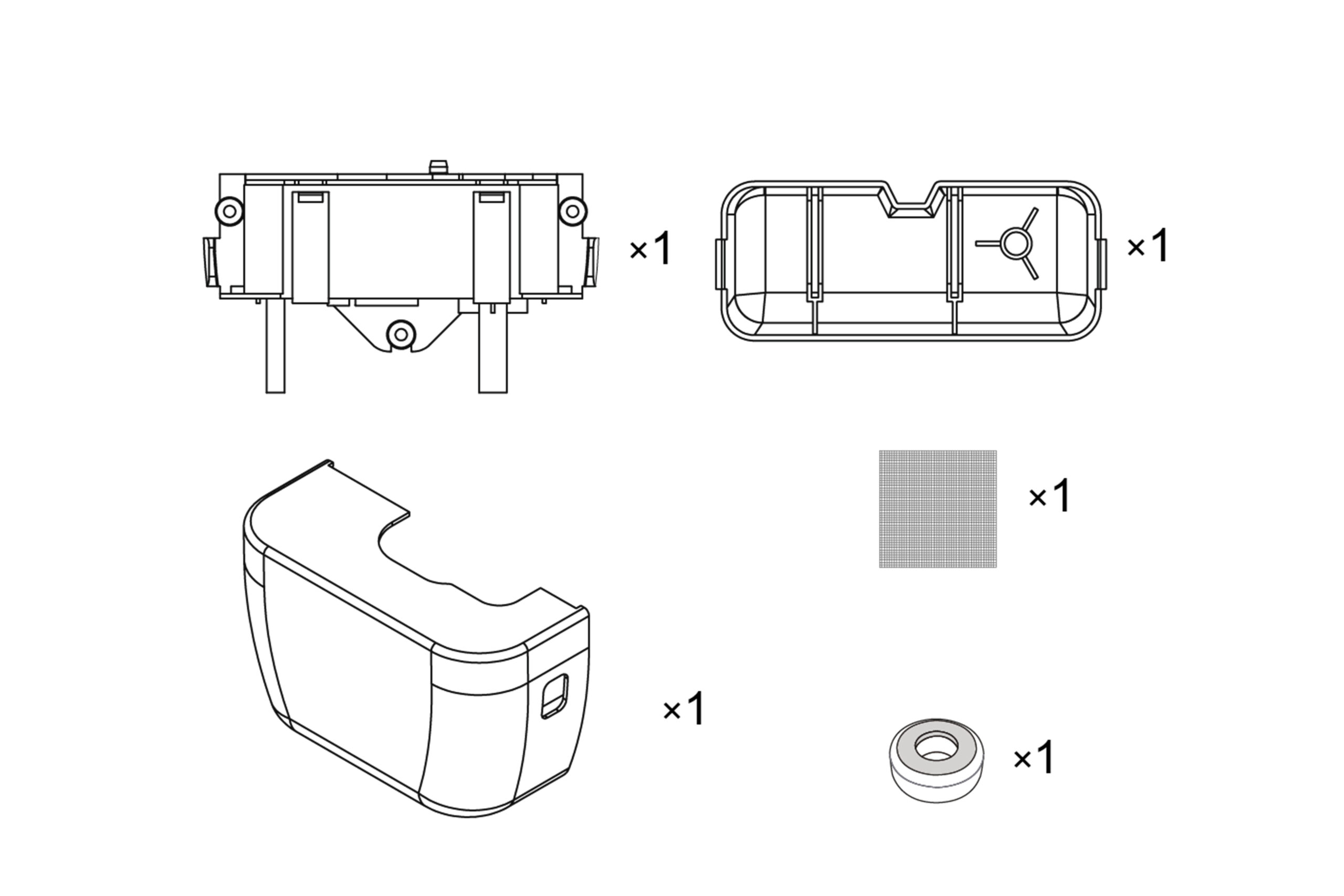

· Ultra Silent               · Easy Assembly             · Aesthetic Design

Edit Content
Power supply
100-240V AC 50/60Hz
Max.flow
20L/h @ 0 head
Sound level
<19dB(A) @ 1m
Water storage
230ml
Max.recommended head
20m
Max.unit output
28kw / 95550 Btu/h
Safety switch
3A Normally closed
Max.water temperature
70ºC
Discharge tube
6mmID
Class
II appliance
Rated
continuous
IP Protection
IPX5
Thermal protection
Yes
Fully potted
Yes
LxWxH
164mmx70mmx102mm
CE marked
Yes
