Tranquil-S

Max. flow High mode

Medium mode

Low mode

 40L/h

30L/h

20L/h

Sound level High mode

Medium mode

Low mode

 19 dB @ 1m

17 dB @ 1m

16 dB @ 1m
Max. head 20m
Edit Content

Low Noise

Large Flow

Soft Start

Accurate and Reliable Water Detection

Speed Selective

Convenient Cleaning

Edit Content
Power supply
100-240V AC 50/60Hz <4W
Max.flow
Low mode 20L/h
Medium mode 30L/h
High mode 40L/h
Sound level
Low mode 16dB(A) @ 1 M
Medium mode 17dB(A) @ 1 M
High mode 19dB(A) @ 1 M
Max.recommended head
20m
Max.suction lift
2m
Max.unit output
46kw / 157000 Btu/h
Max.water temperature
70ºC
Discharge tube
6mmID
Class
II appliance
IP Protection
IP-45
Fully potted
Yes
Start method
Soft Start

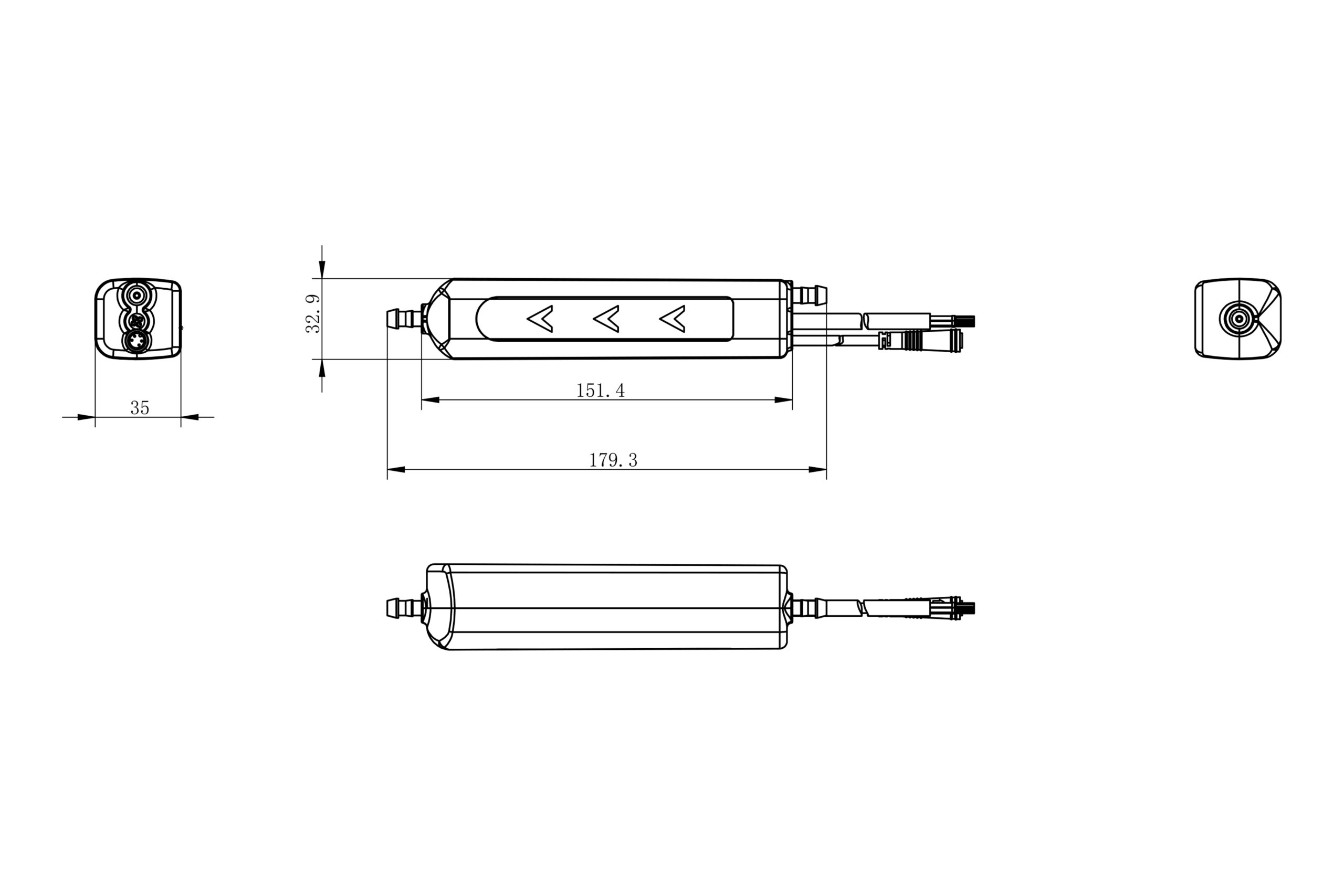

LxWxH
185mmx36mmx34mm
Edit Content

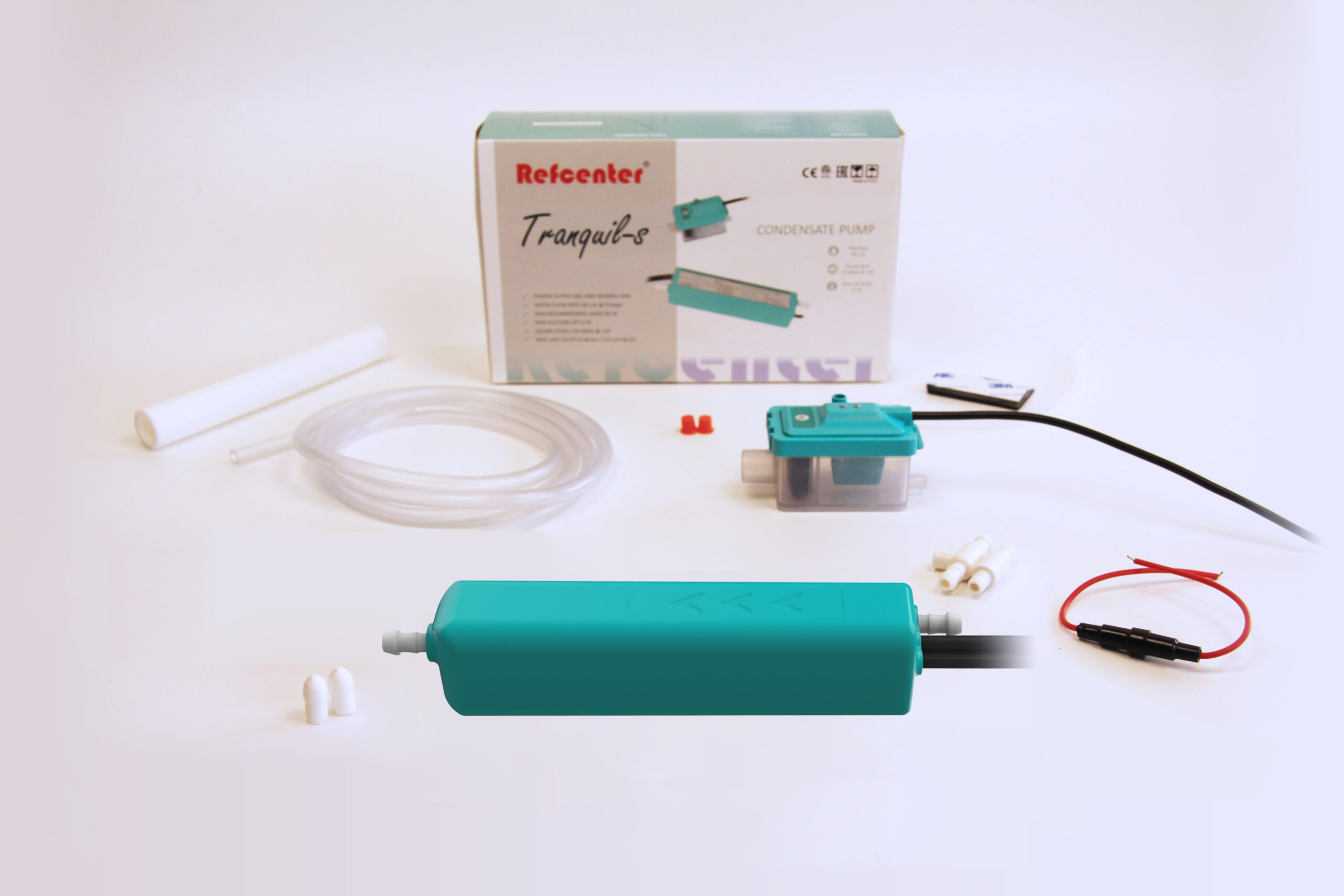

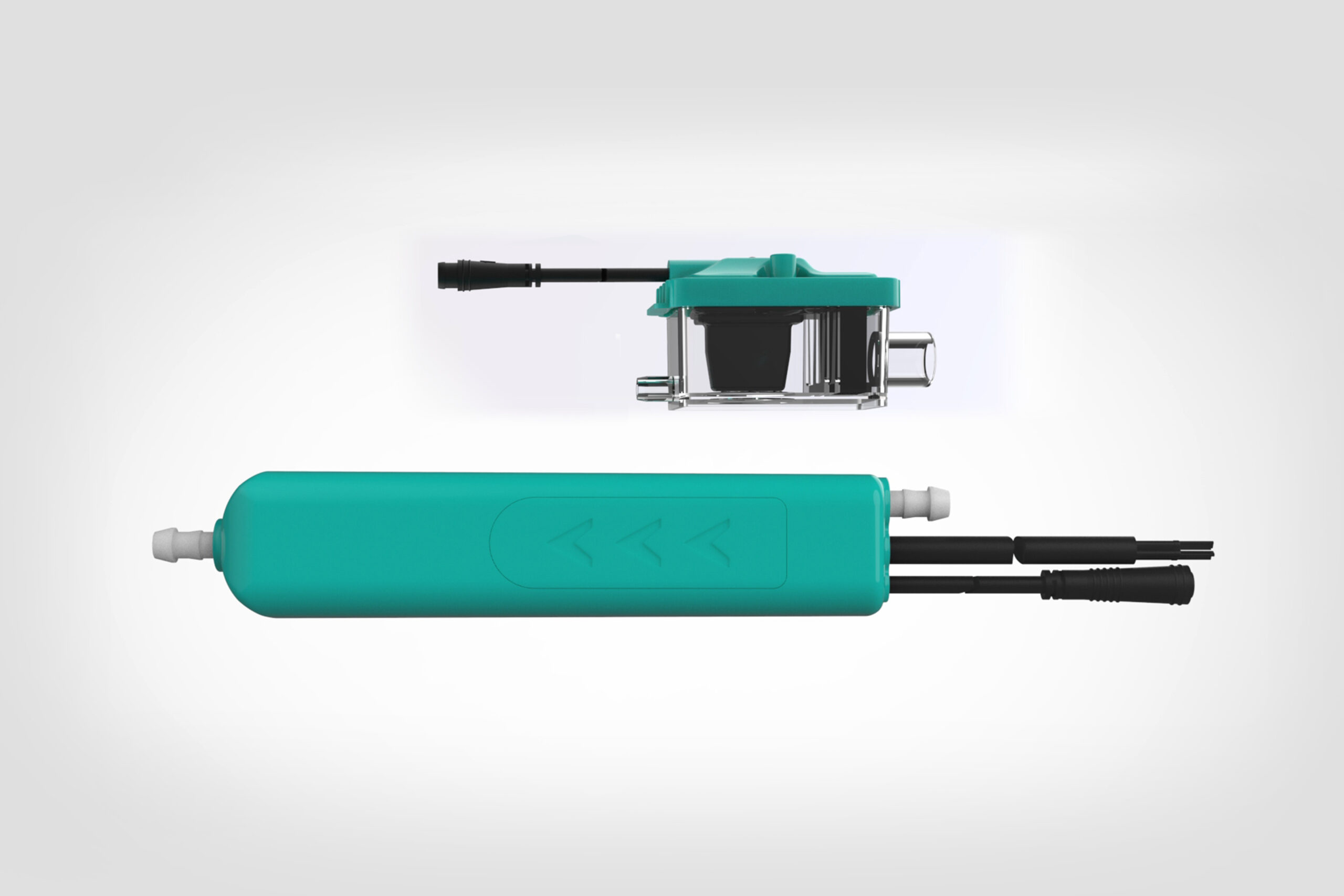

Assembled Tranquil-S

Assembled inline reservoir, including:

lid and capacitor plate
fn key
status indicator
filter
breather hole 6mm od
reservoir

Plug connector

150cm length of 6mm I/D vinyl tube

Silicon tube 15cm

Power cable

1A fuse

Anti-sipon valve

Check valve

3M tape 2x50mmx20mmx1mm

3M tape 1x50mmx20mmx2.5mm

Nylon clamps 4x200mmx4mm
